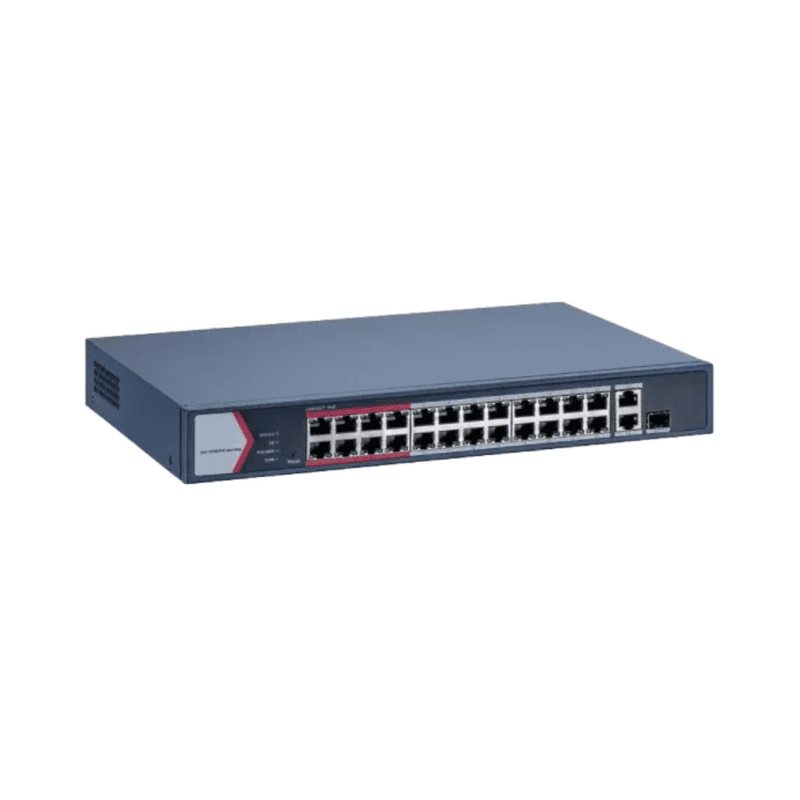

Hikvision DS-3E1326P-EI/M: 24 Port Fast Ethernet Smart POE Switch.
Official Hikvision 24 Port Fast Ethernet Smart POE Switch, supplied and installed by Al-Ruwwad in Amman and across Jordan.
Key features
- 24 × 10/100M PoE ports, 1 × Gigabit combo,1 × Gigabit RJ45 port
- Total PoE Power Budget 230 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Specifications
| General | |
|---|---|
| Shell | Metal material |
| Net Weight | 2.13 kg (4.7 lb) |
| Gross Weight | 3.1 kg (6.8 lb) |
| Dimensions (W × H × D) | 335.00 mm × 44.00 mm × 220.80 mm (13.19'' × 1.73'' × 8.69'') |
| Operating Temperature | 0 °C to 45 °C (0 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 4 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 20 W |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port |
| MAC Address Table | 16 K |
| Switching Capacity | Whole-Device Performance: 14.8 Gbps Port Performance: 8.8 Gbps |
| Packet Forwarding Rate | Whole-Device Performance: 11.01 Mpps Port Performance: 6.55 Mpps |
| Internal Cache | 4 Mbits |
| Software Function | |
| Long Range | Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| VIP Port | Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| Port Isolation | Ports 1 to 26: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group(s). |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes. Support DSCP-based Q |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology i |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support mana |
| DHCP Snooping | DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by defau |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
Specifications from the official Hikvision product page.
